These photographs come from existing CHENHE project records and show plate heat exchangers installed in real industrial systems.
The equipment, piping and installation environment remain authentic; only exposure, colour, framing and web sizing have been refined.

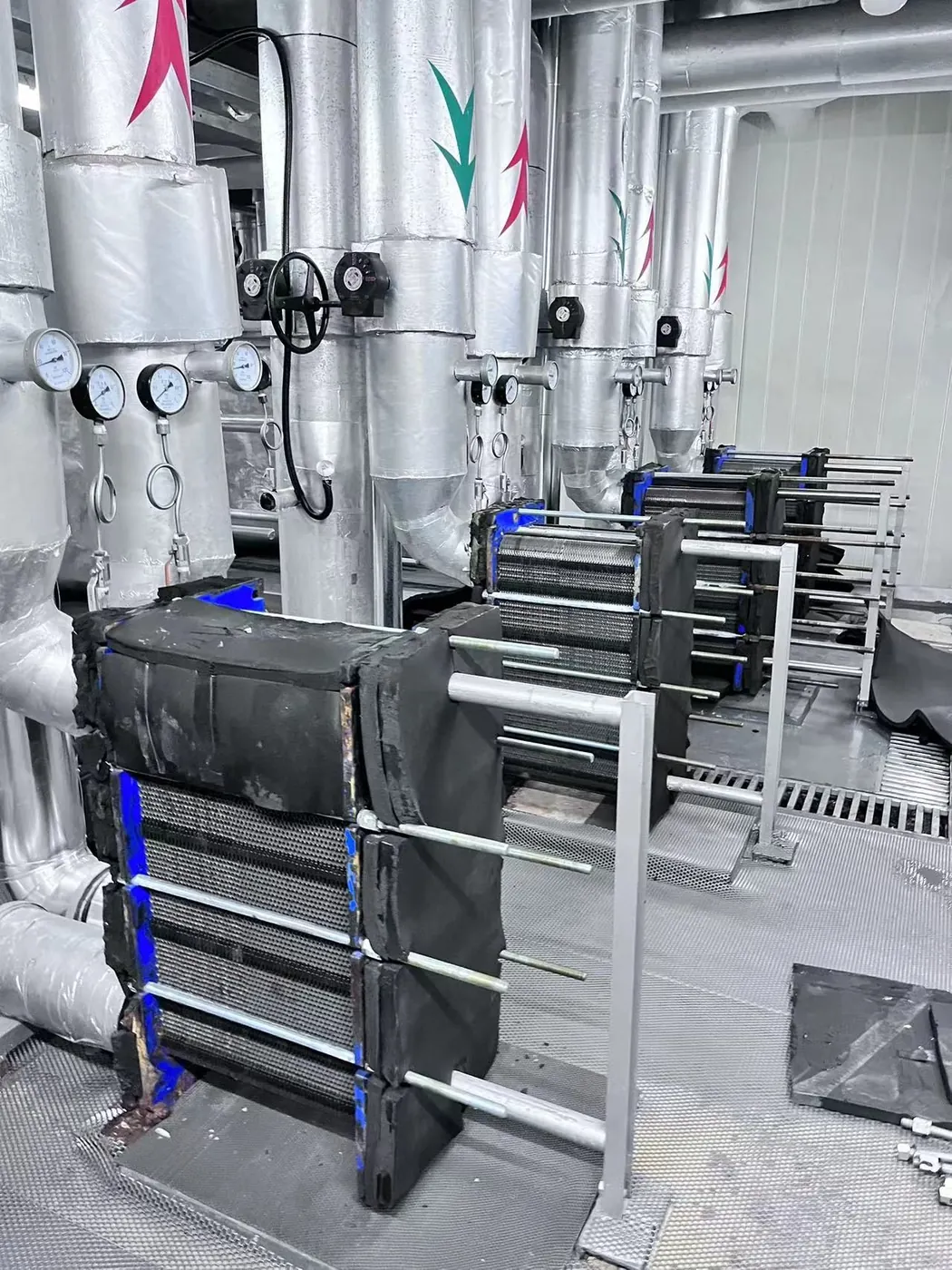

Multiple gasketed plate heat exchangers installed in a building energy plant for heat transfer and hydraulic separation between independent circuits.

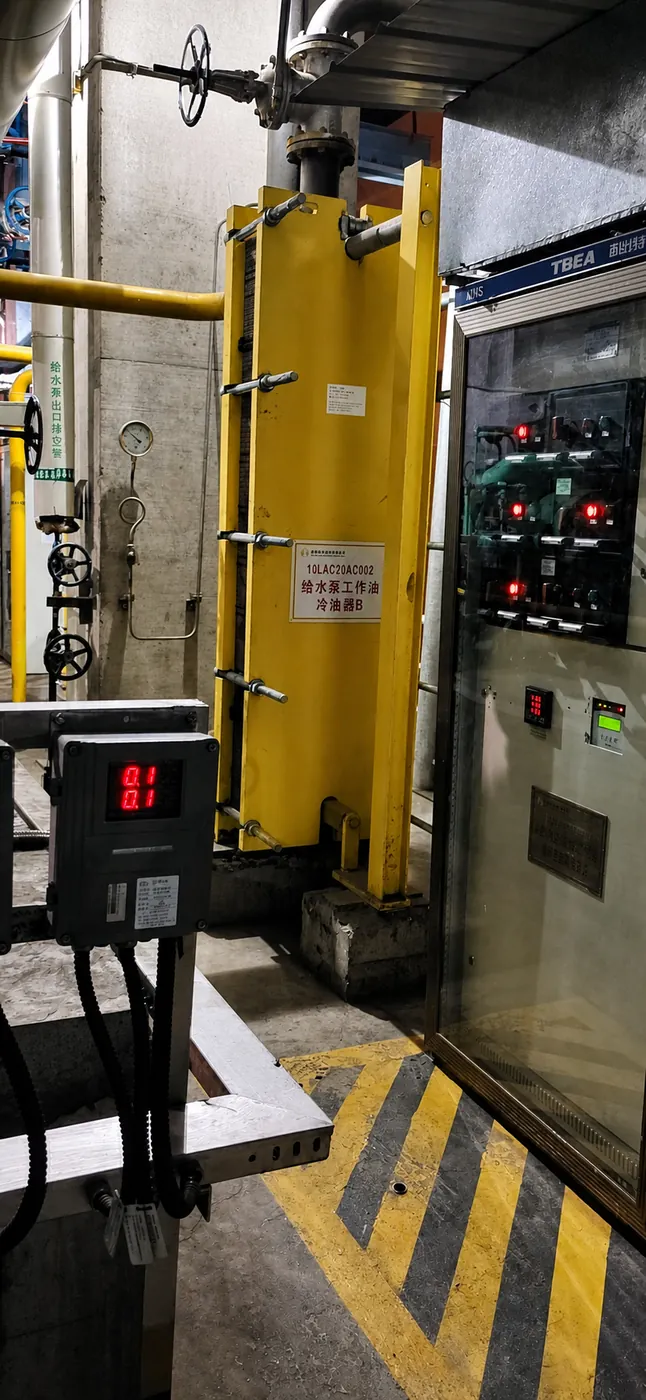

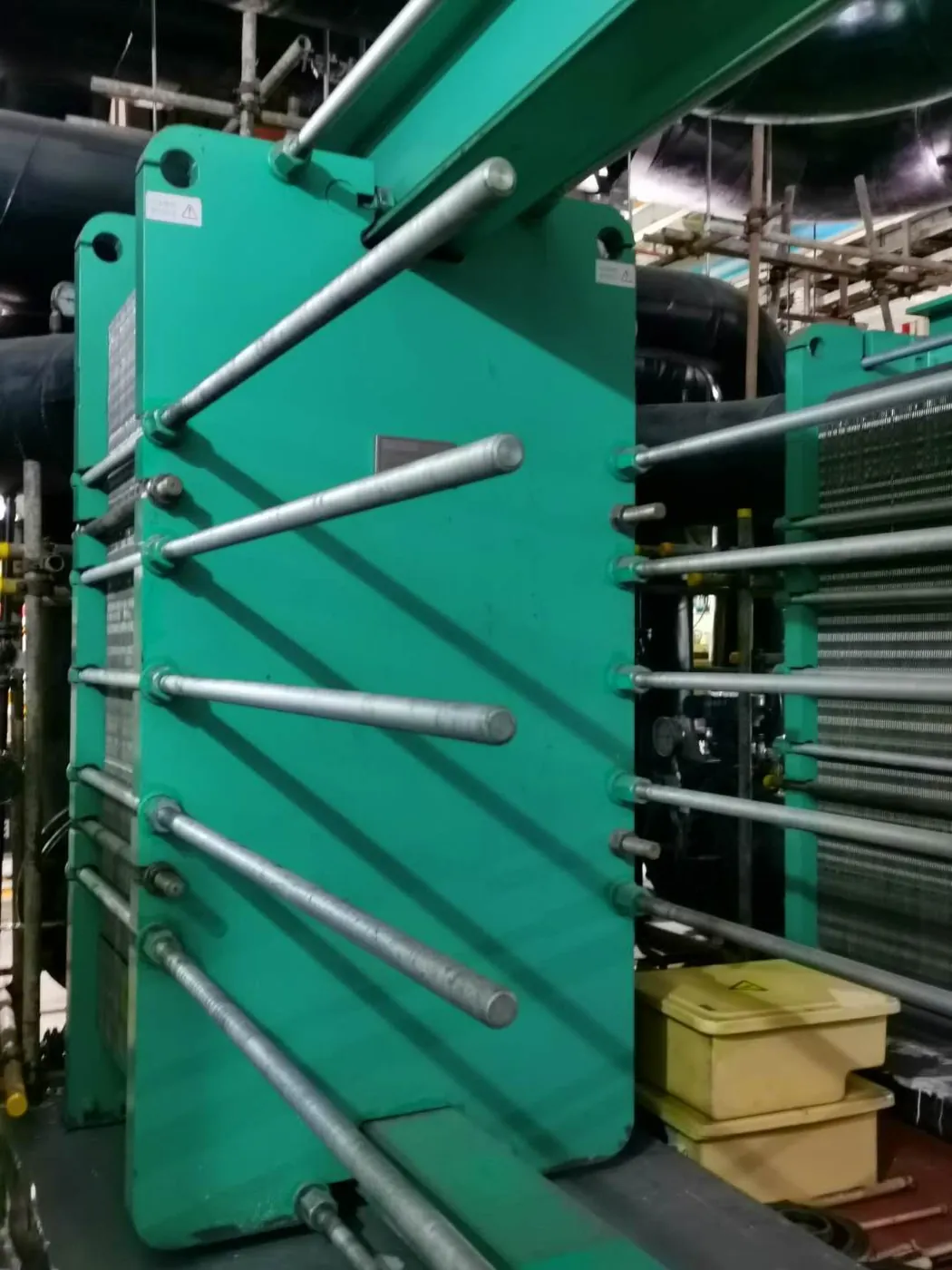

A large gasketed plate heat exchanger installed in a power-plant auxiliary system, combining high thermal duty with service access.

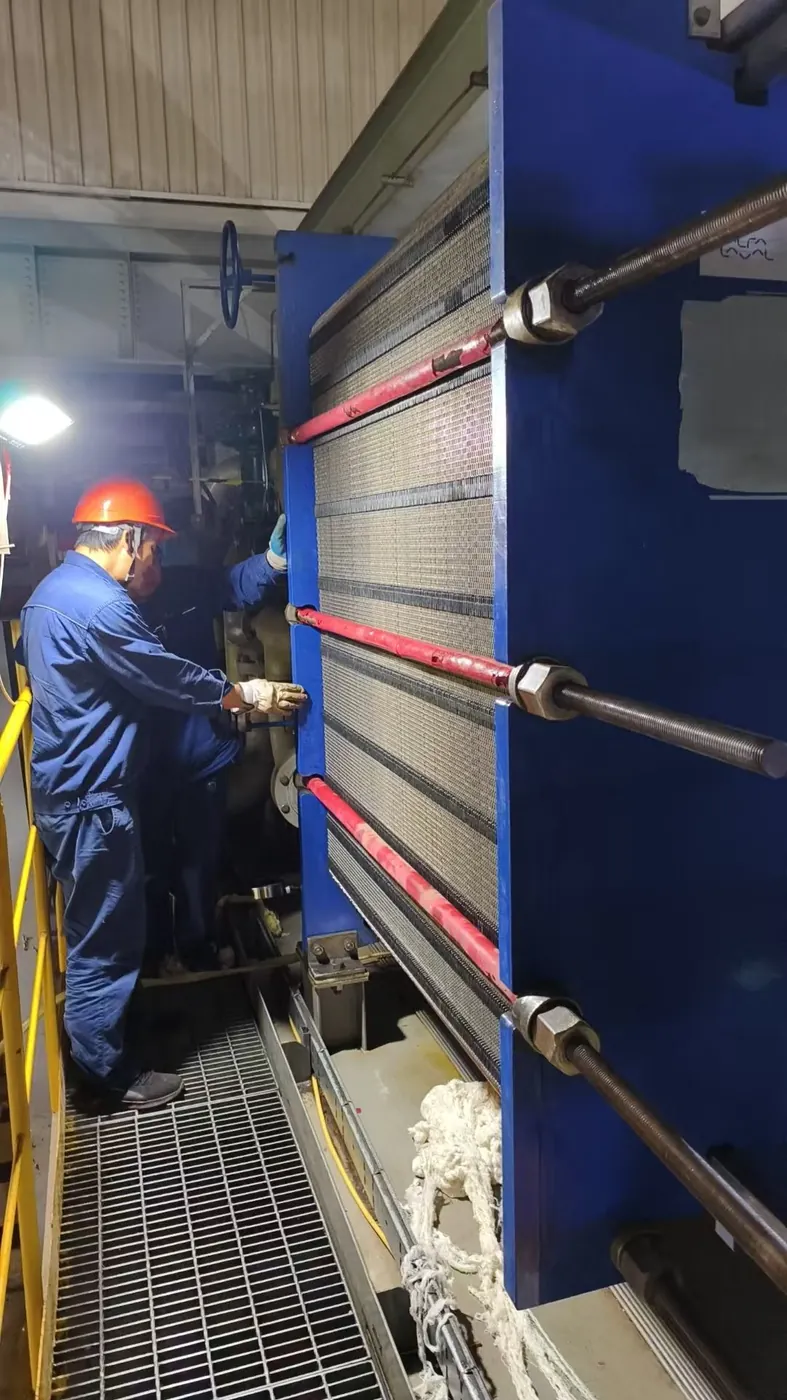

Technicians inspect the plate pack and tightening condition on site, supporting reliable operation and planned maintenance.

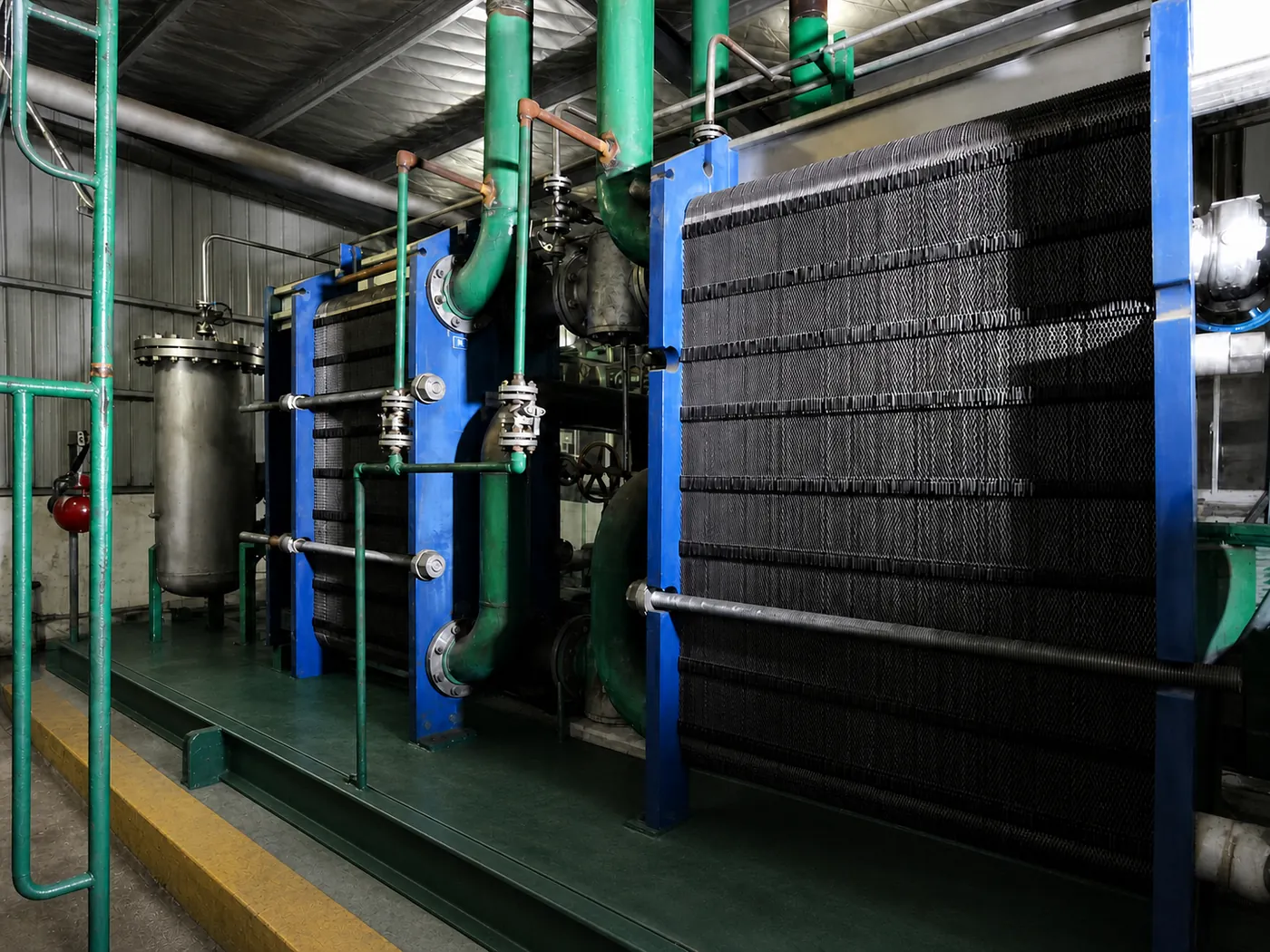

Multiple plate heat exchangers arranged in parallel within the process network for concentrated duty, compact footprint and grouped maintenance.

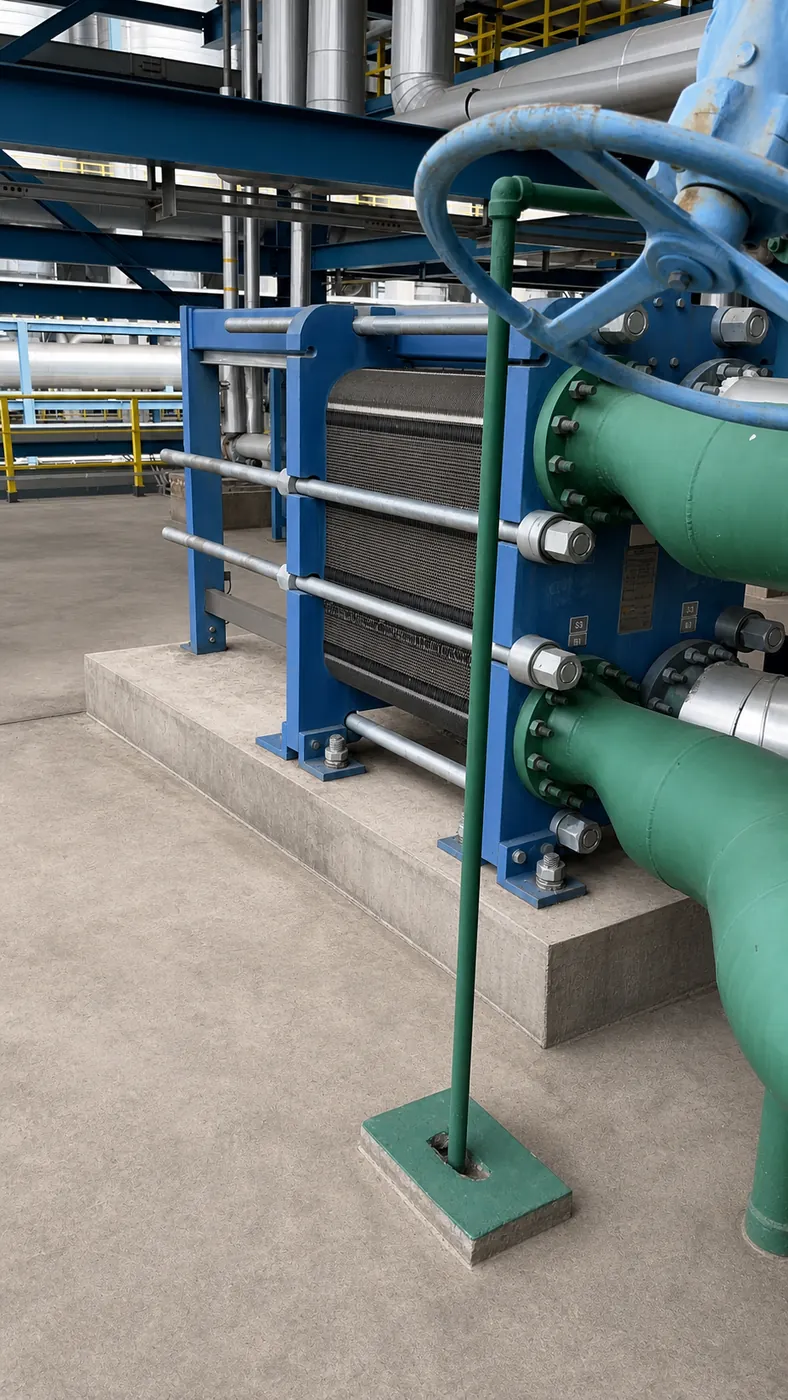

Two gasketed units connected to the plant utility network, enabling heat transfer and service access in a limited equipment area.

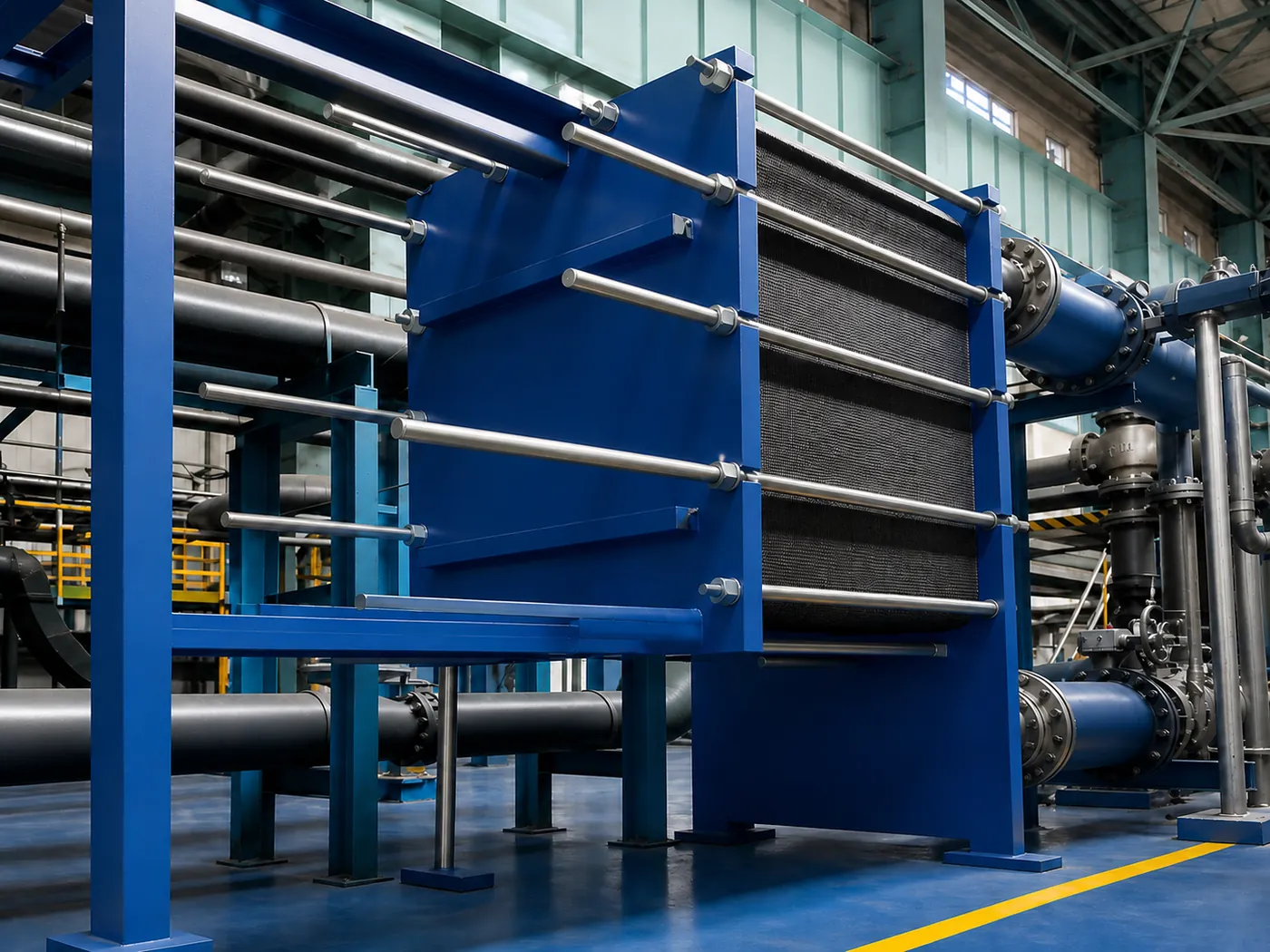

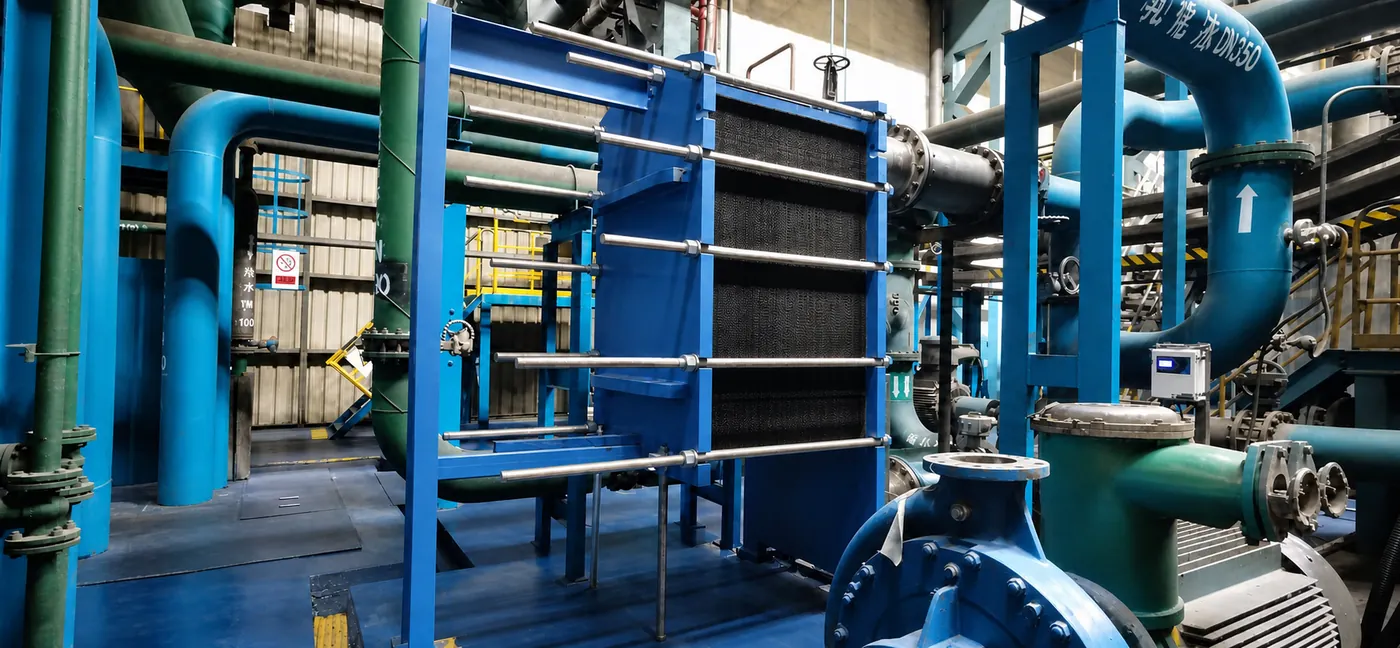

Gasketed plate heat exchangers integrated into a steel-plant cooling network provide a compact and maintainable thermal link for demanding equipment.

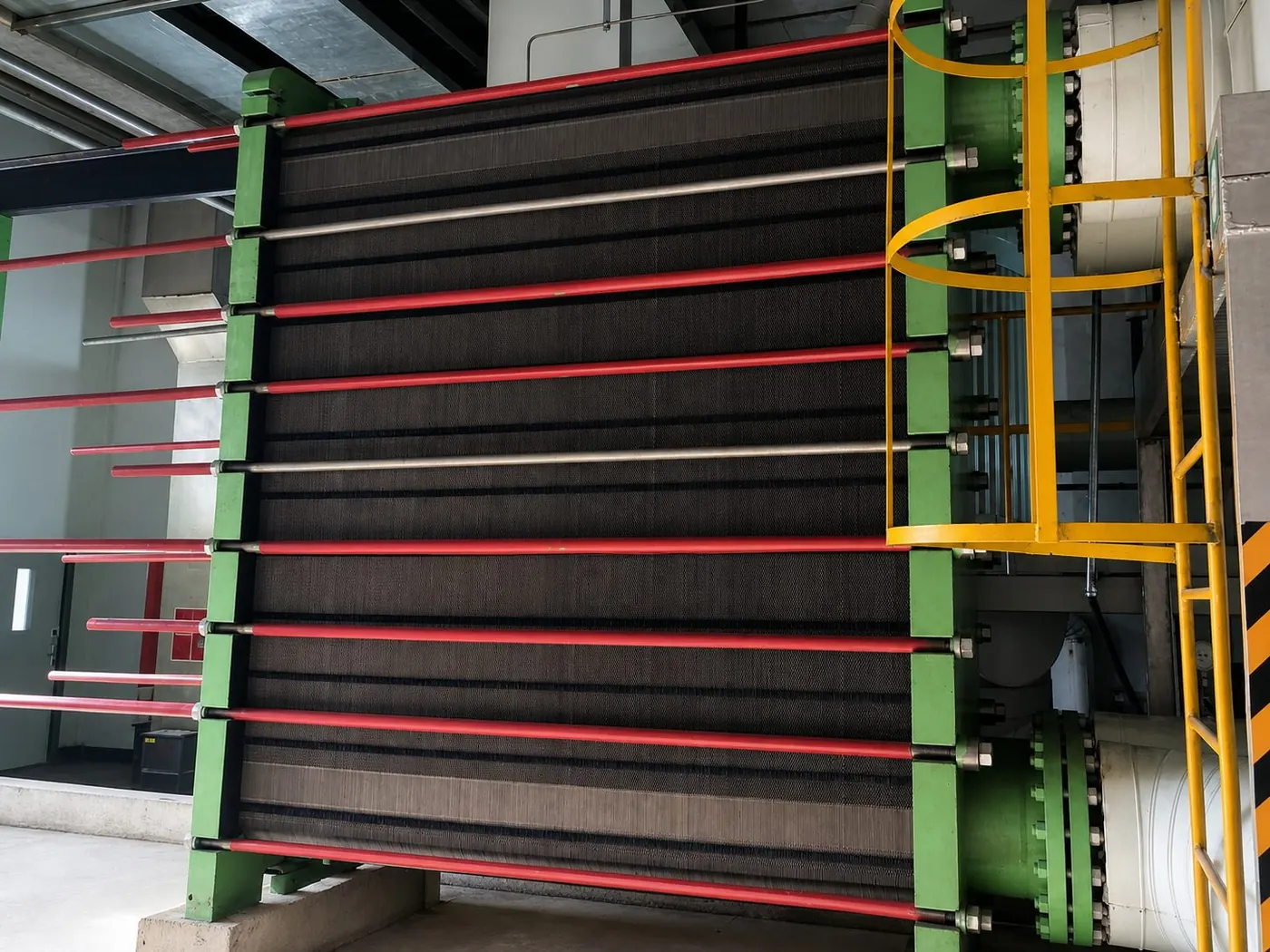

A large plate pack is coordinated with site pipework and access platforms for continuous power-plant duty and maintainability.
Send the media, temperatures, flow, pressure or existing-equipment details and the CHENHE team will support selection and configuration.
