REPLACEMENT PART
PLATE IDENTIFICATION
Replacement heat exchanger plates
Each plate model is matched one-to-one with the gasket for the same equipment model, plate groove and fixing structure.

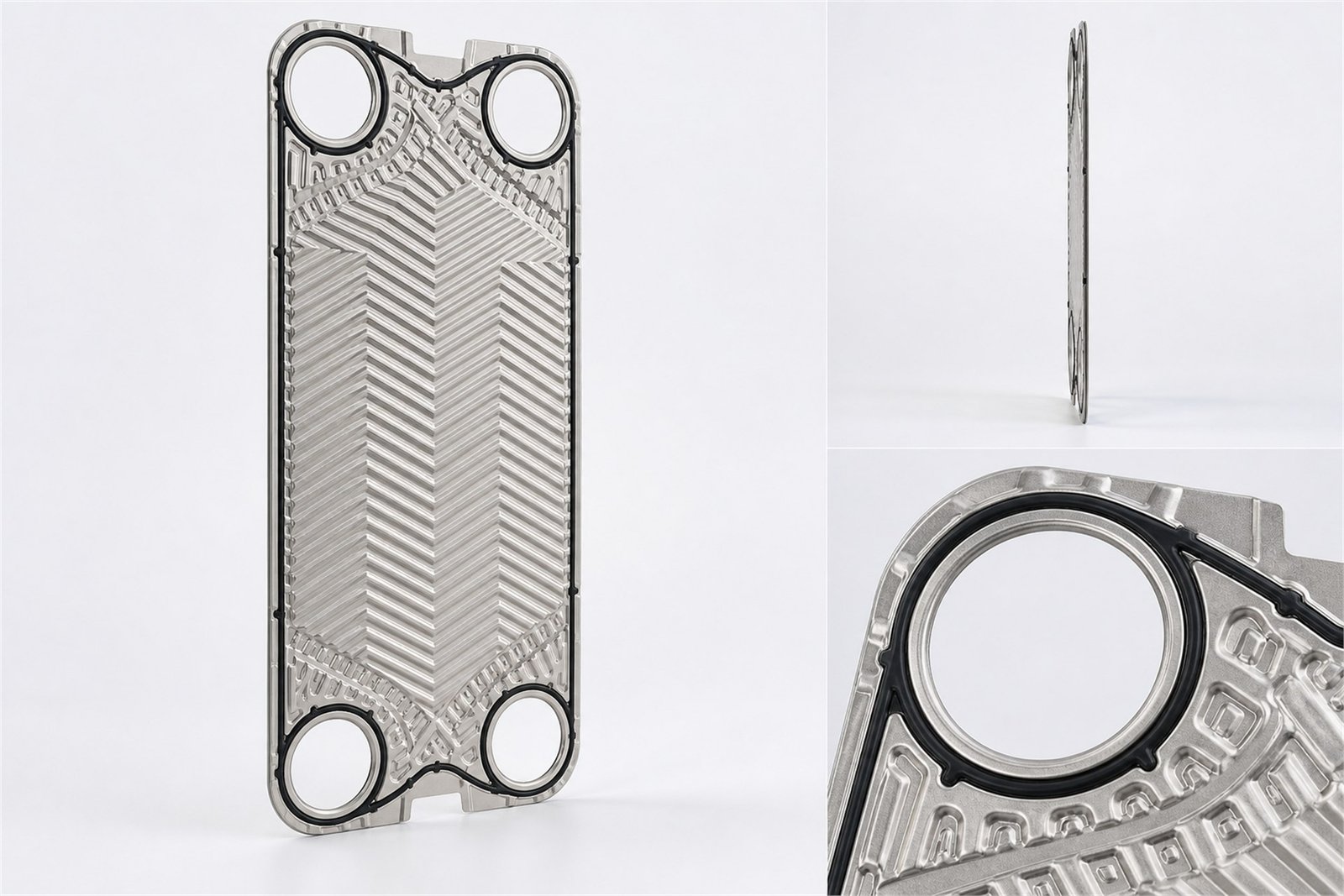

PRODUCT OVERVIEW
Confirmed by brand, model and plate geometry
Each plate model is matched one-to-one with the gasket for the same equipment model, plate groove and fixing structure.
- Identify
- Brand, model, nameplate and plate code
- Verify
- Port layout, profile, corrugation and dimensions
- Materials
- 304, 316L, titanium, 254SMO, nickel alloy and Hastelloy
- Confirm
- Thickness, quantity, matching gasket and delivery country
COMMON PLATE MODELS
PLATE IDENTIFICATION & SELECTION01 02 03 04
Use the equipment data to identify the compatible heat exchanger plate.
Plate and gasket models correspond one-to-one. Provide the brand, model, nameplate, plate code and front/back photographs; CHENHE will verify port positions, outline, corrugation, material and thickness.
Ports & corrugation
Front/back, corner-port and corrugation photographs
Material & thickness
Stainless steel, titanium and specialist alloys
Quantity & delivery
Plate count, thickness and destination country
BRANDS & MODELS
Compatible plate matrix for major brands
Select a sample to filter the corresponding models and highlight the commonly specified plate materials.
| Brand | Product series | Compatible models | Matching gasket compounds | Gasket fixing method |
|---|---|---|---|---|
| Alfa Laval | T series | T2 / T5 / T6 / T8 / T10 / T15 / T20 / T21 / T25 / T35 / T45 / T50 | NBR / EPDM / FKM / Food grade | Clip-on / Bonded |

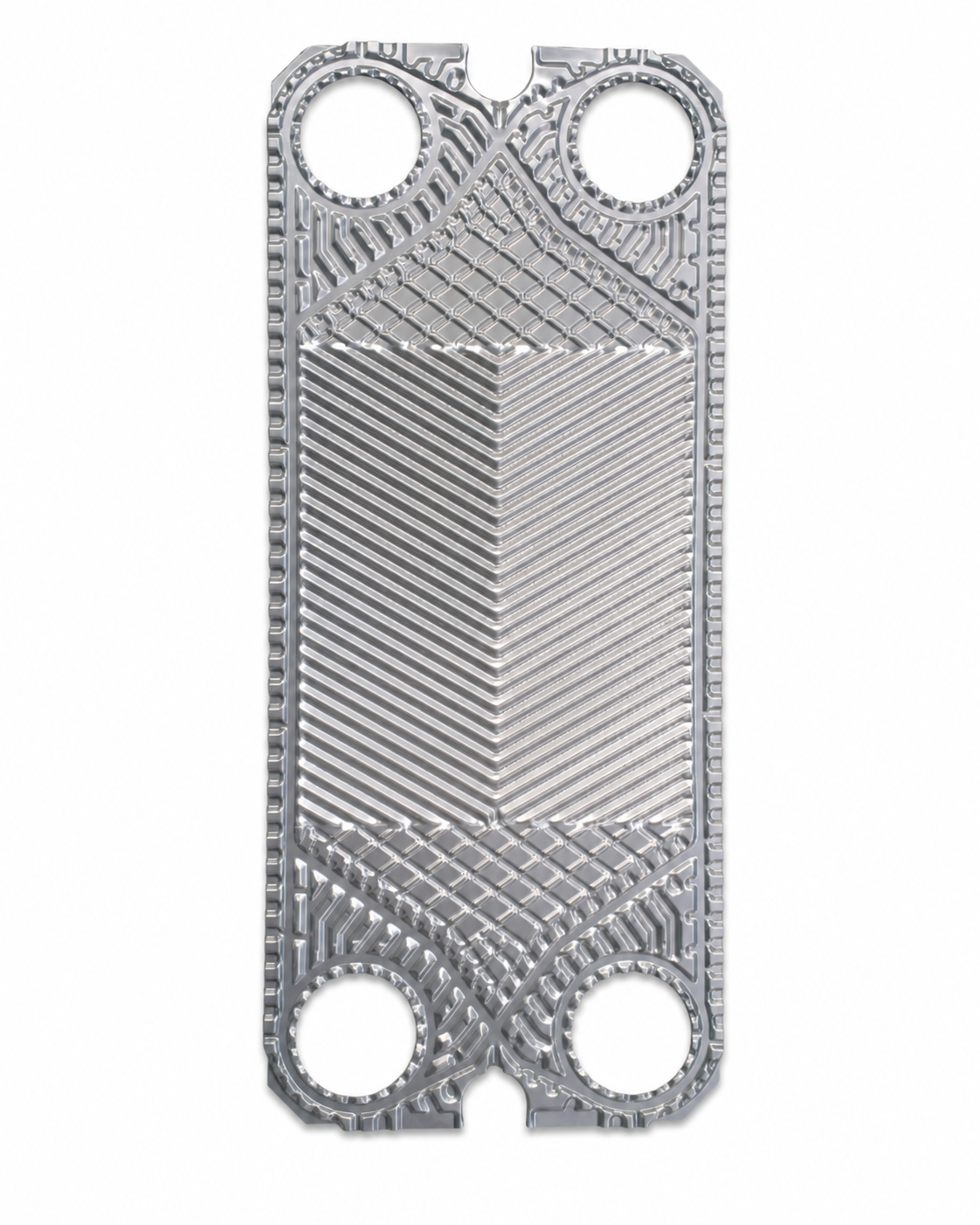

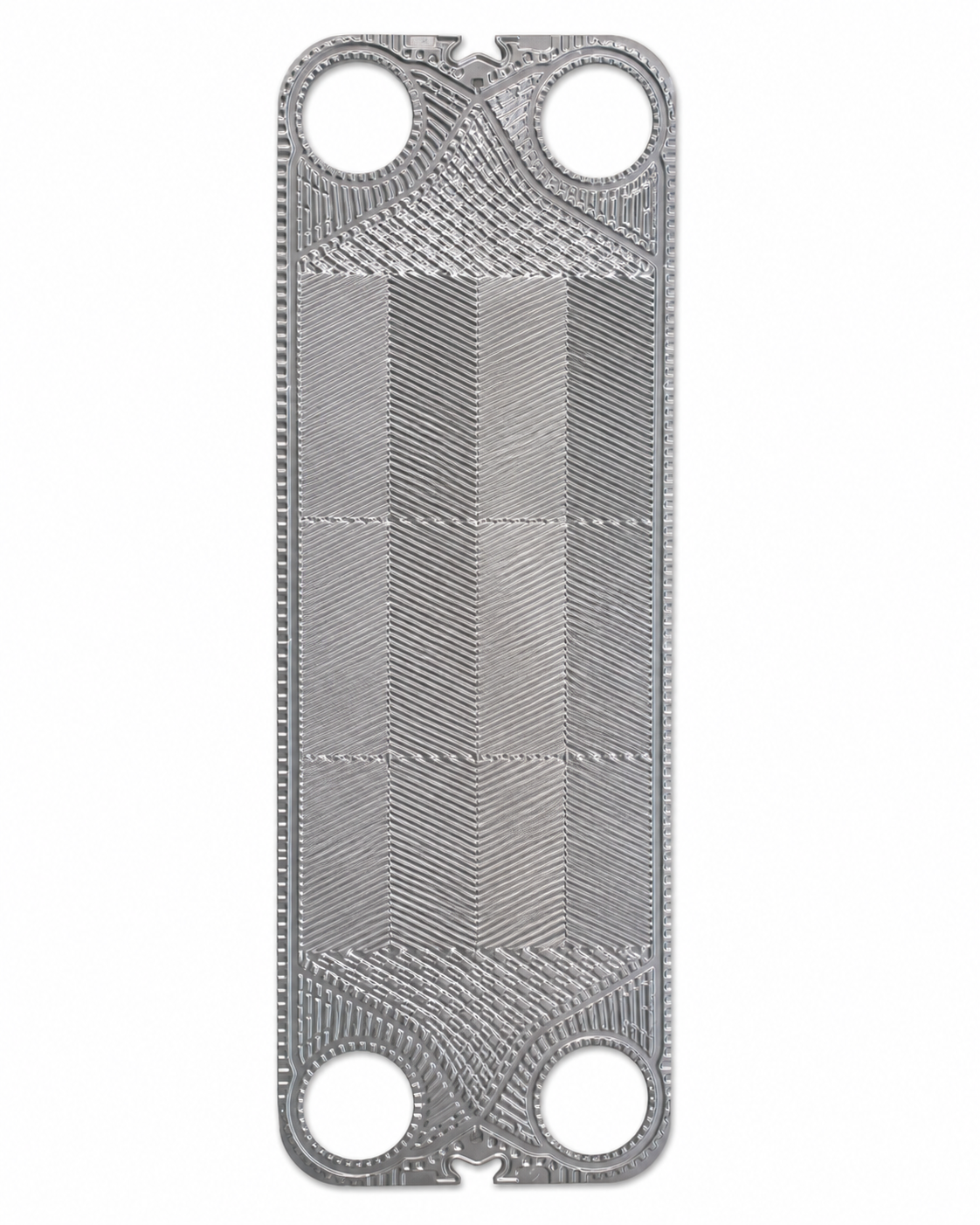

| Alfa Laval | M / TL / TS / MX / MA | M3 / M6 / M10 / M15 / M20 / TL3 / TL6 / TL10 / TL15 / TS6 / TS20 / MX25 / MA30 | NBR / EPDM / FKM / High-temperature compounds | Clip-on / Bonded |
| Kelvion · GEA Ecoflex | NT series | NT25M / NT50M / NT100M / NT150L / NT250S-M-L / NT350 / NT500 | NBR / EPDM / FKM / HNBR | LocIn / Clip-on |

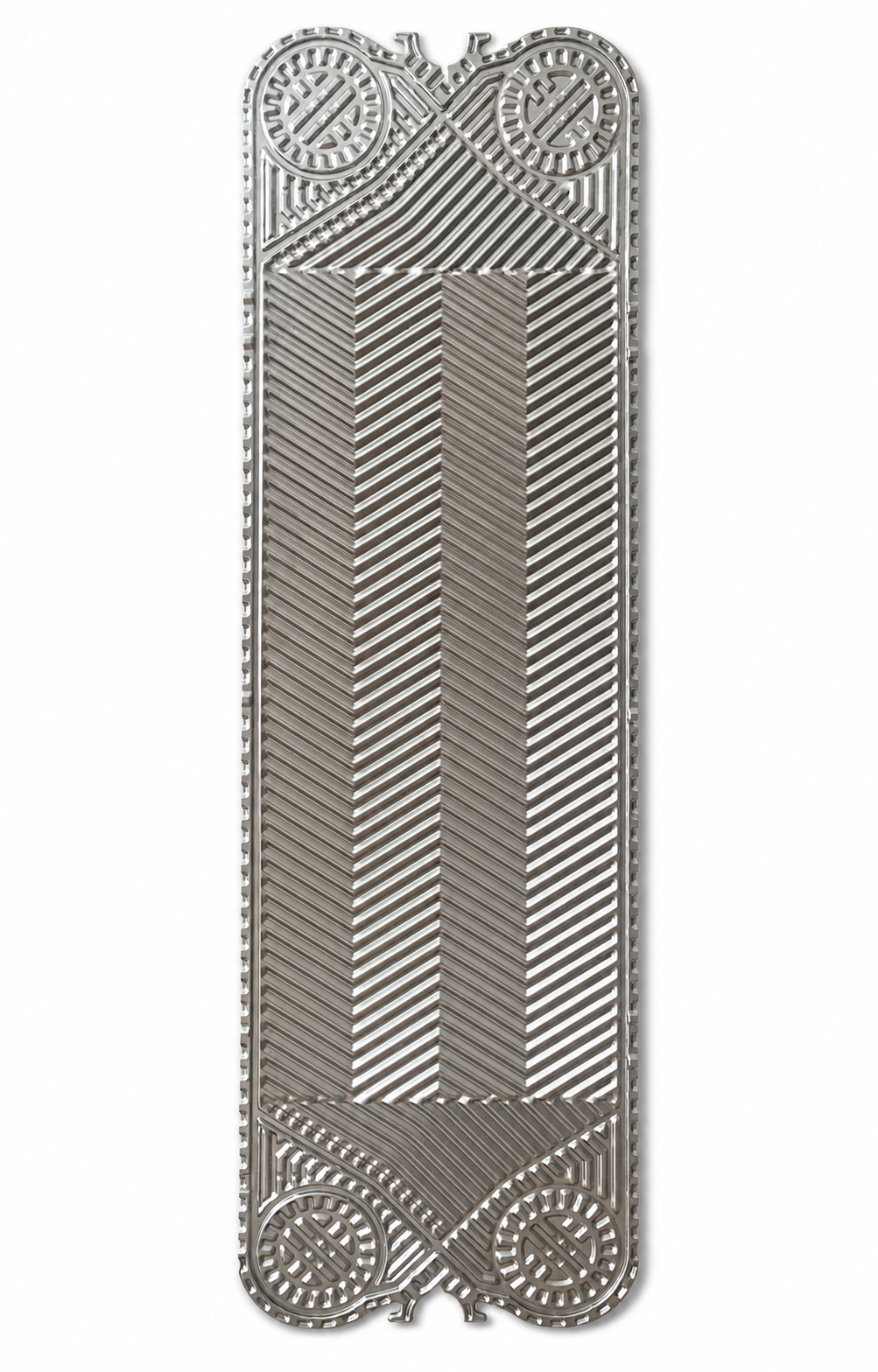

| Kelvion · GEA Ecoflex | VT series | VT04 / VT10 / VT20 / VT40 / VT80 / VT405P / VT805 | NBR / EPDM / FKM | Clip-on / Bonded |

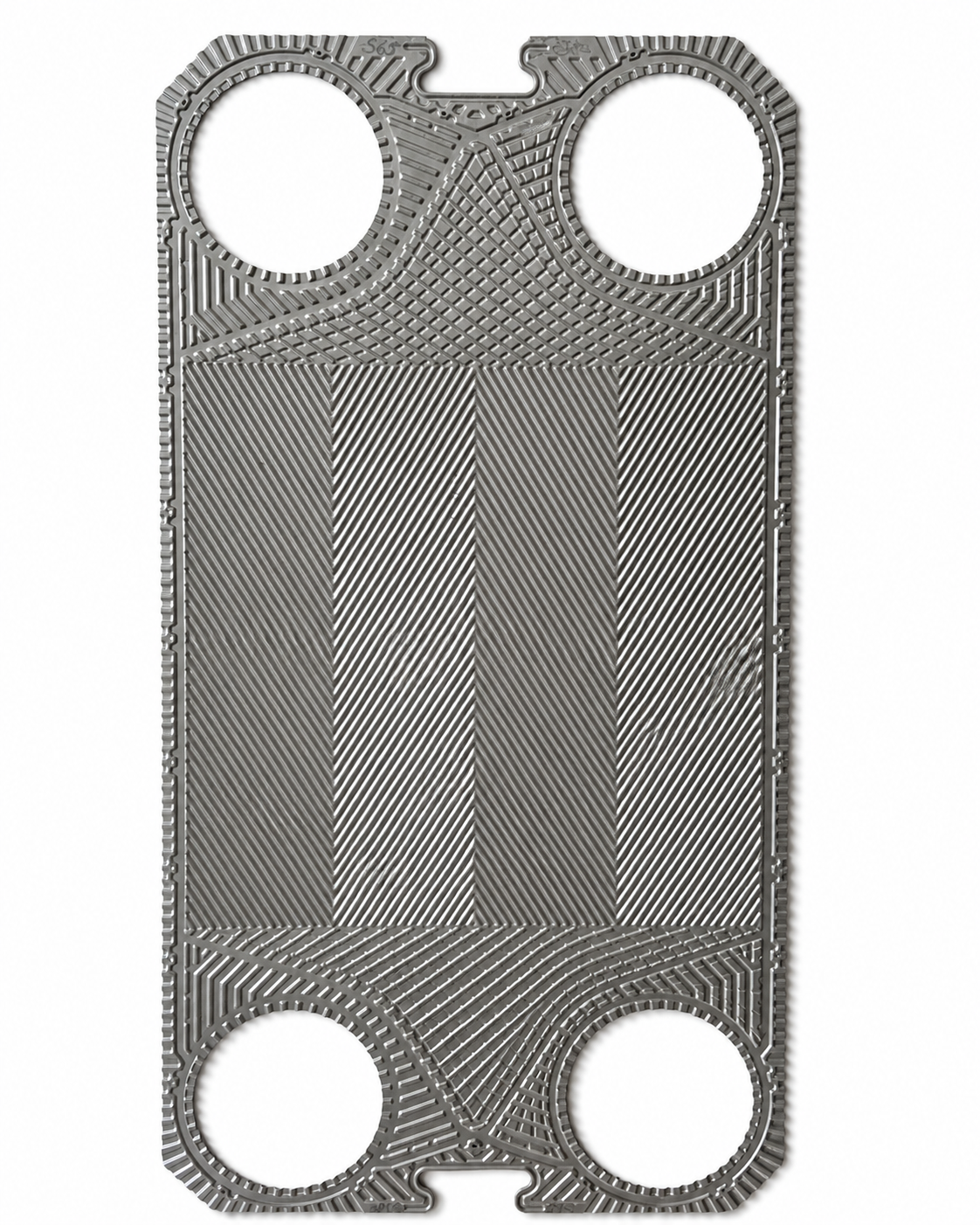

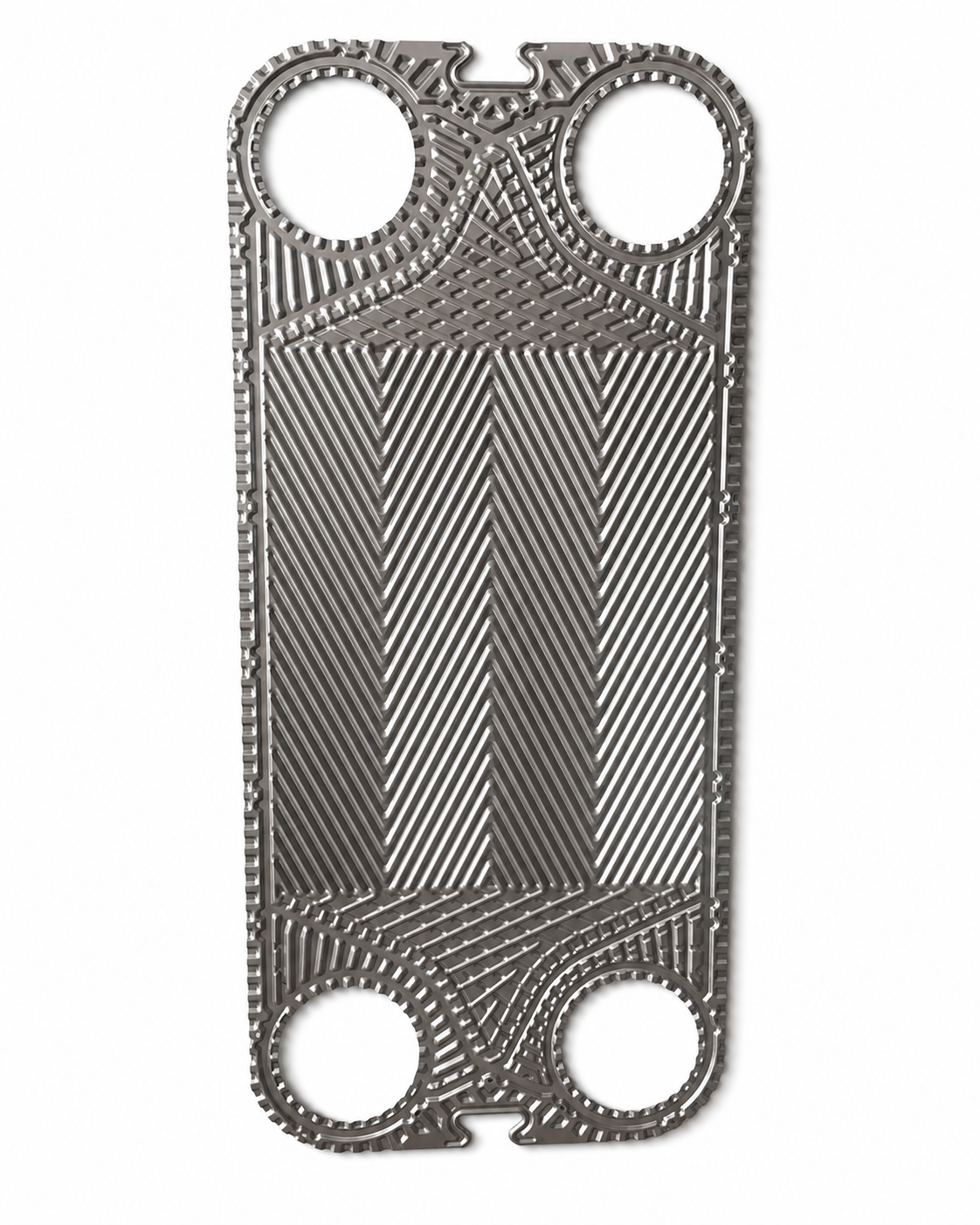

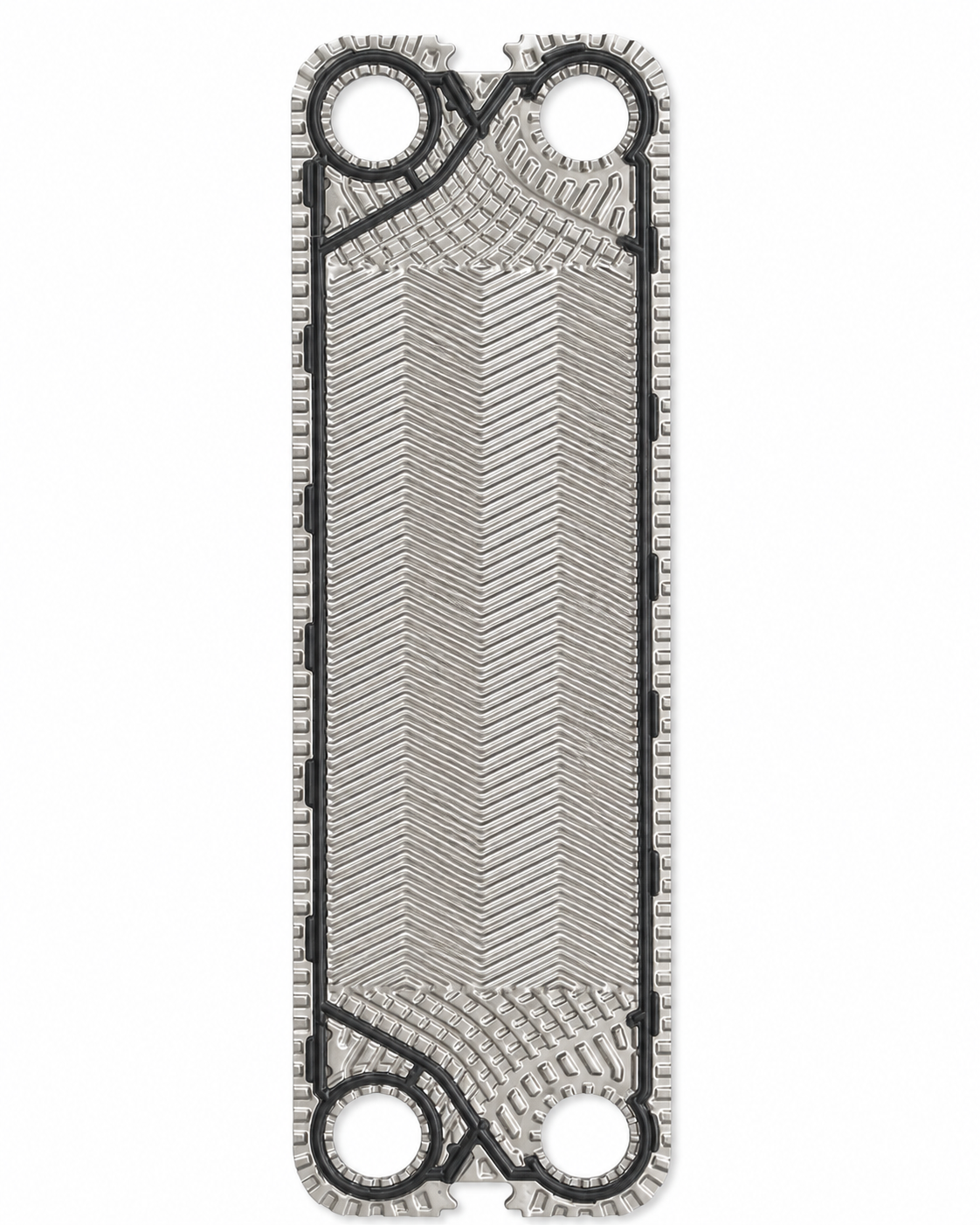

| Danfoss SONDEX | S series | S4A / S7A / S8A / S14A / S17 / S19A / S20A / S21A / S22 / S31A / S37 / S41 / S42 / S43 / S47 / S62 / S65 / S100 / S121 / S251 | EPDM-HT / NBR-HT / FKM | SonderLock / Hang-on |

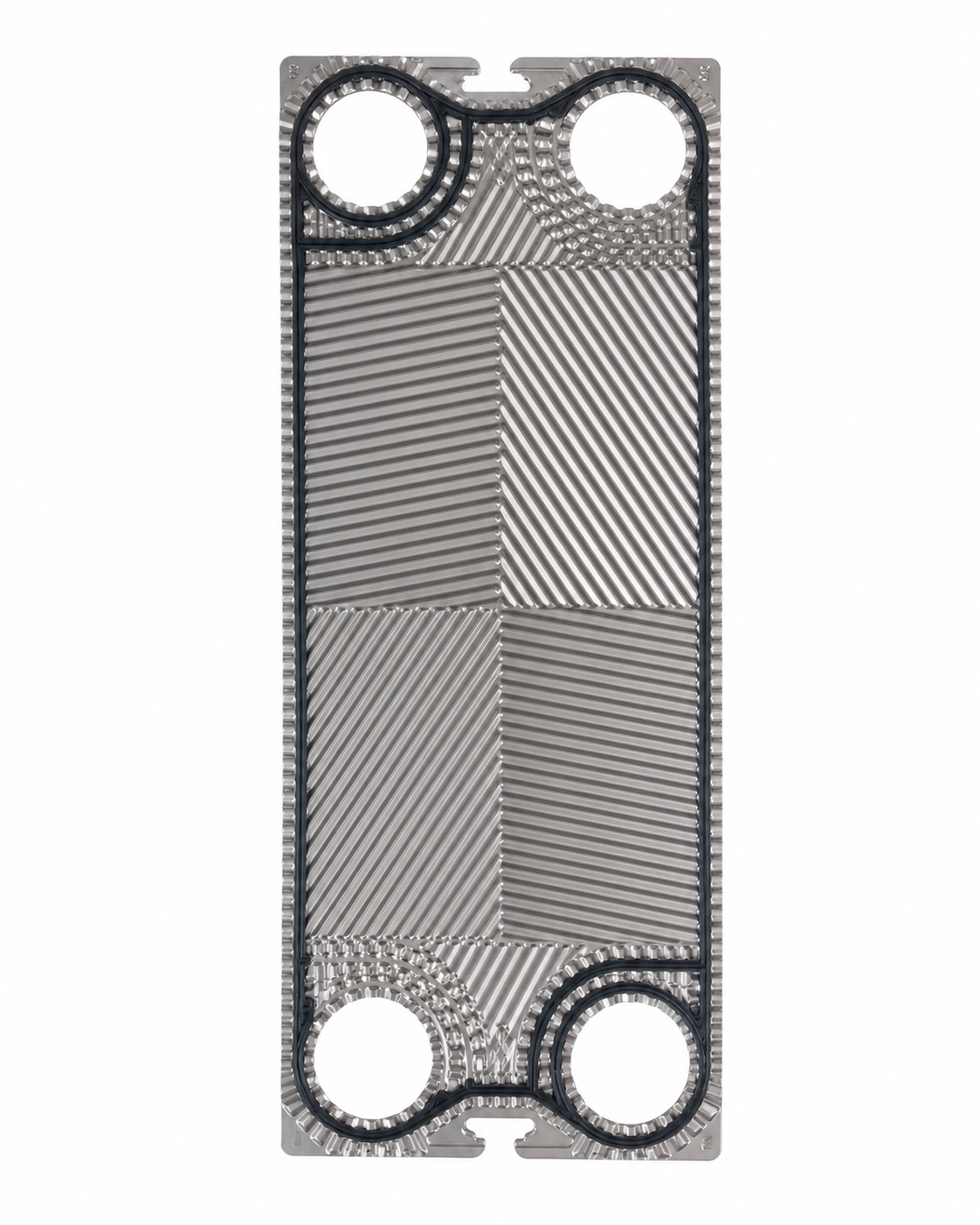

| Tranter | GX / GT series | GX-007 / GX-012 / GX-018 / GX26 / GX-042 / GX-051 / GX-060 / GX-085 / GX-091 / GX-100 / GX-118 / GX-145 / GX-205 / GX-265 | NBR / EPDM / FKM / HNBR / EPDM-RC | Clip-on / Bonded |

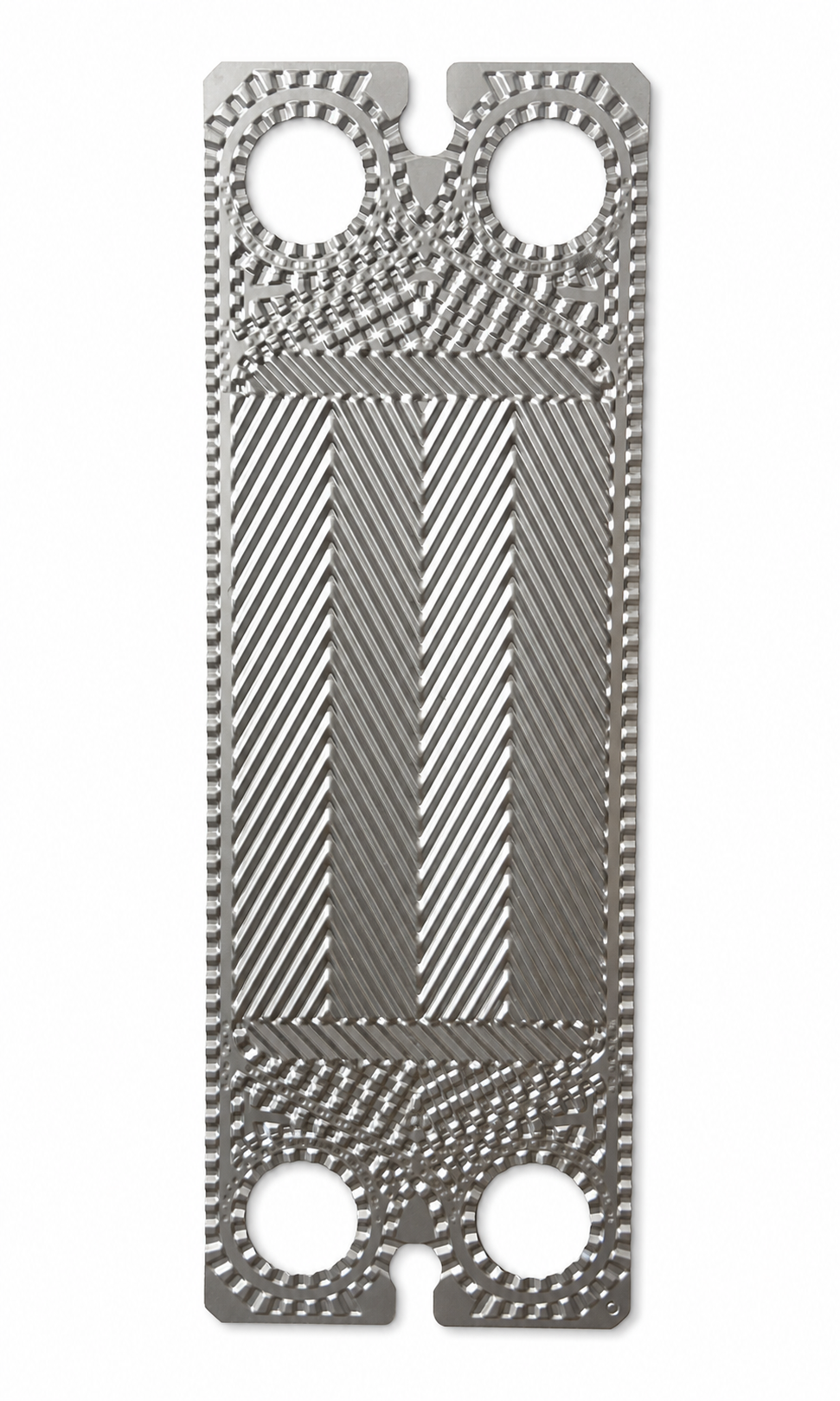

| Tranter | GC / GL / UXP / GFP | GC12 / GC16 / GC26 / GC51 / GC60 / GL13 / UXP / GFP | NBR / EPDM / FKM | Confirm against plate profile |

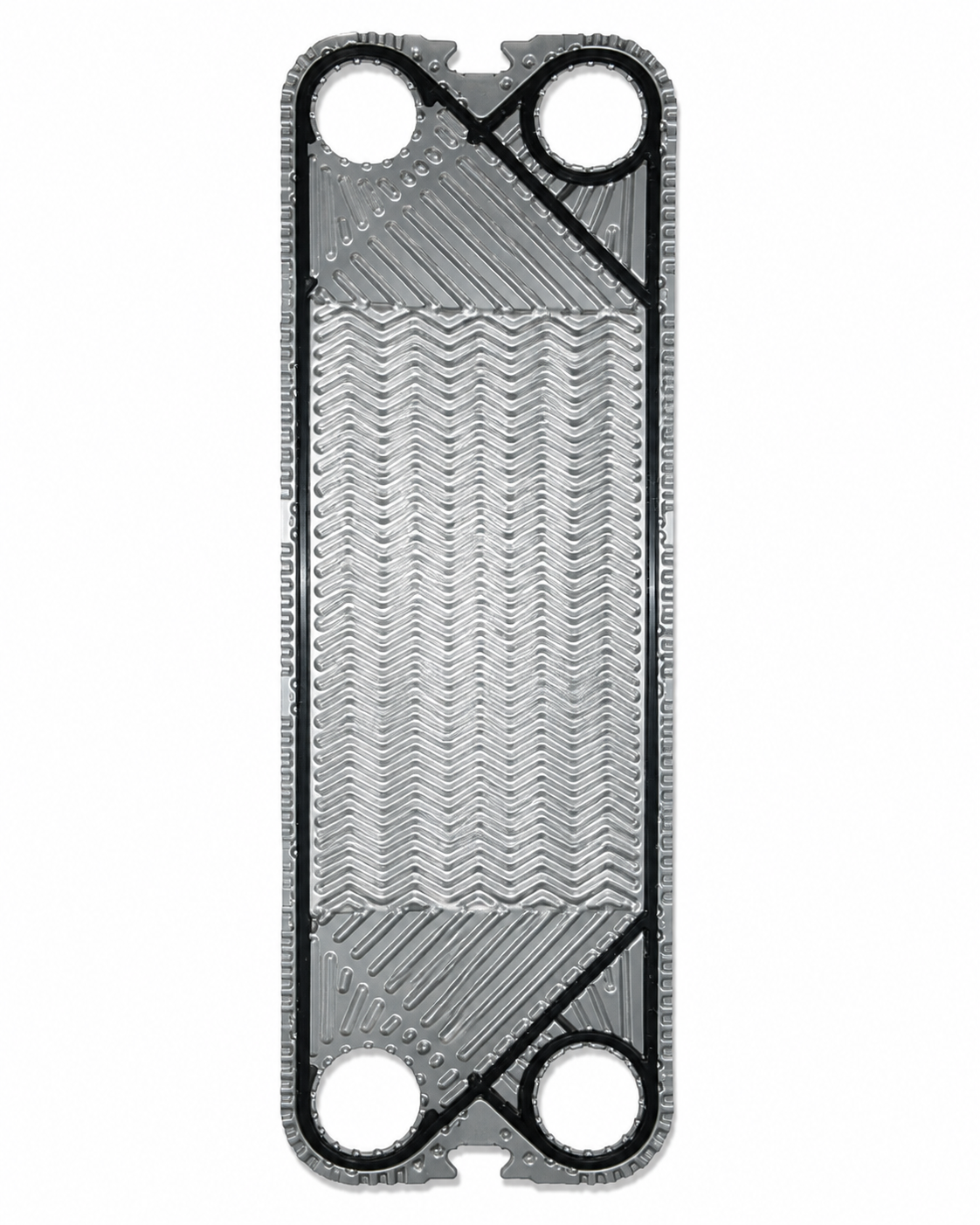

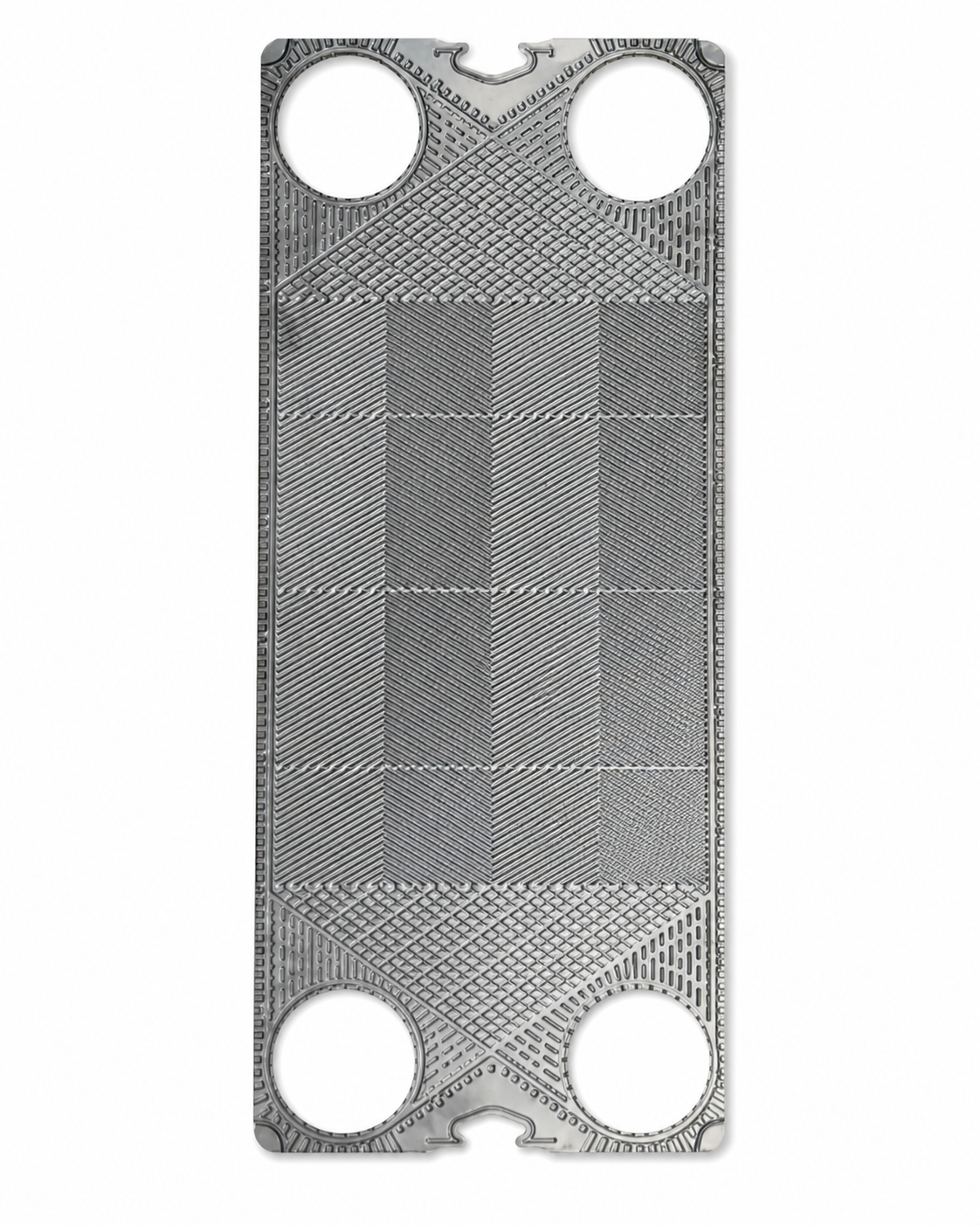

| SPX FLOW APV | SR / J / H series | SR1 / SR2 / SR3 / SR6 / SR9 / SR14 / SR15 / SR23 / SR30 / SR41 / SR61 / H17 / J107 / J154 / N35 | NBR / EPDM / FKM / Food grade | Snap-on / Bonded |
| HISAKA | UX / RX / LX / SX | UX-005 / 01 / 10 / 20 / 30 / 40 / 80 / 90 / 100 / 110 / 130 / 160; RX / LX / SX series | NBR / EPDM | Slit-in A / Bonded |

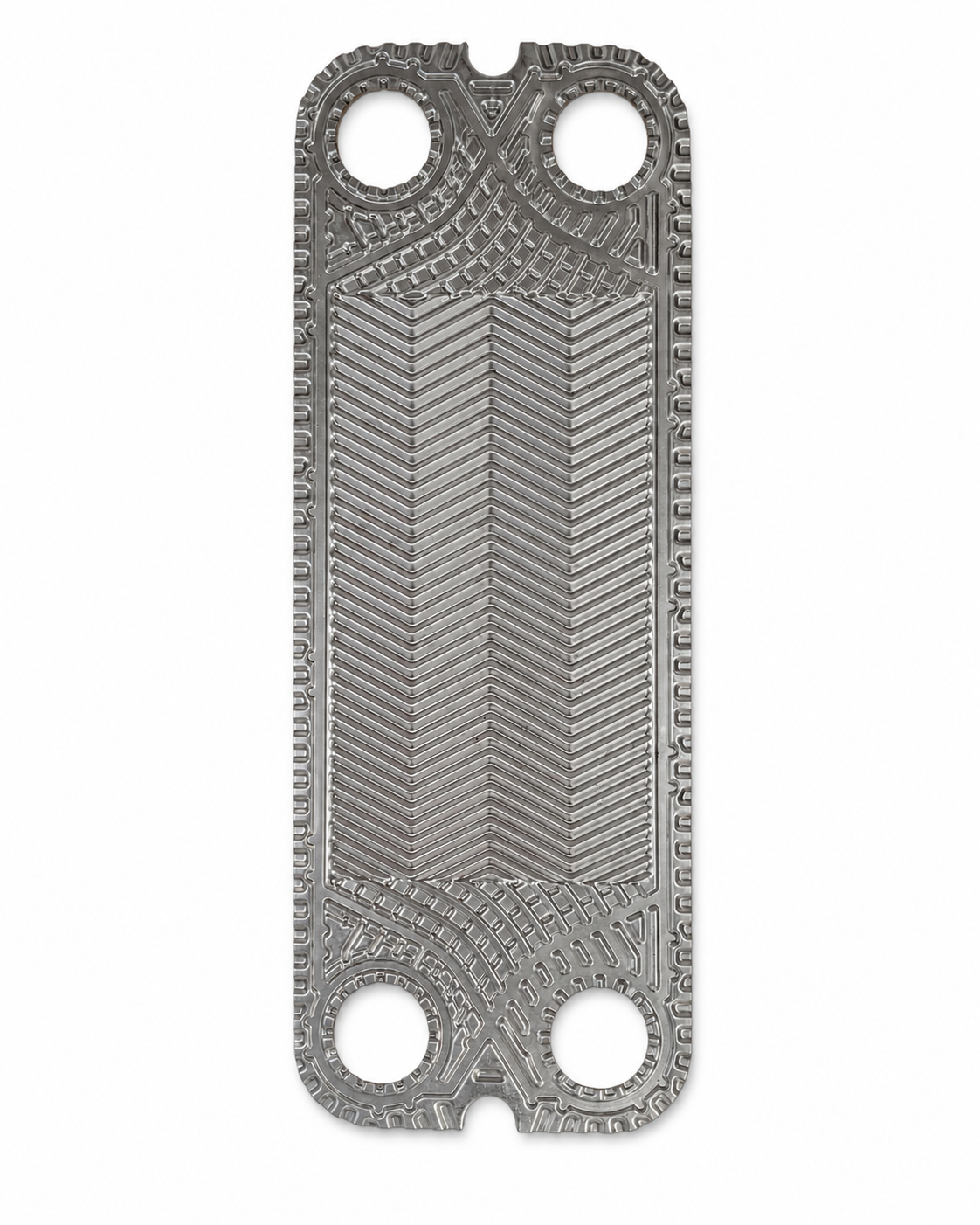

| FUNKE | FP series | FP10 / FP2000 / FP4031 / FP4040 / FP4050 / FP4071 / FP7120 / FP7160 / FP7190 / FP31 / FP40 / FP50 / FP71 / FP81 / FP120 / FP160 / FP190 | NBR-HT / HNBR / EPDM-HT / FKM | Clip-on |
| API Schmidt-Bretten | SIGMA series | SIGMA 13 / 19 / 25 / 26 / 27 / 29 / 35 / 37 / 38 / 56 / 66 / 76 / 96 | NBR / EPDM / FKM | Confirm by plate or nameplate |

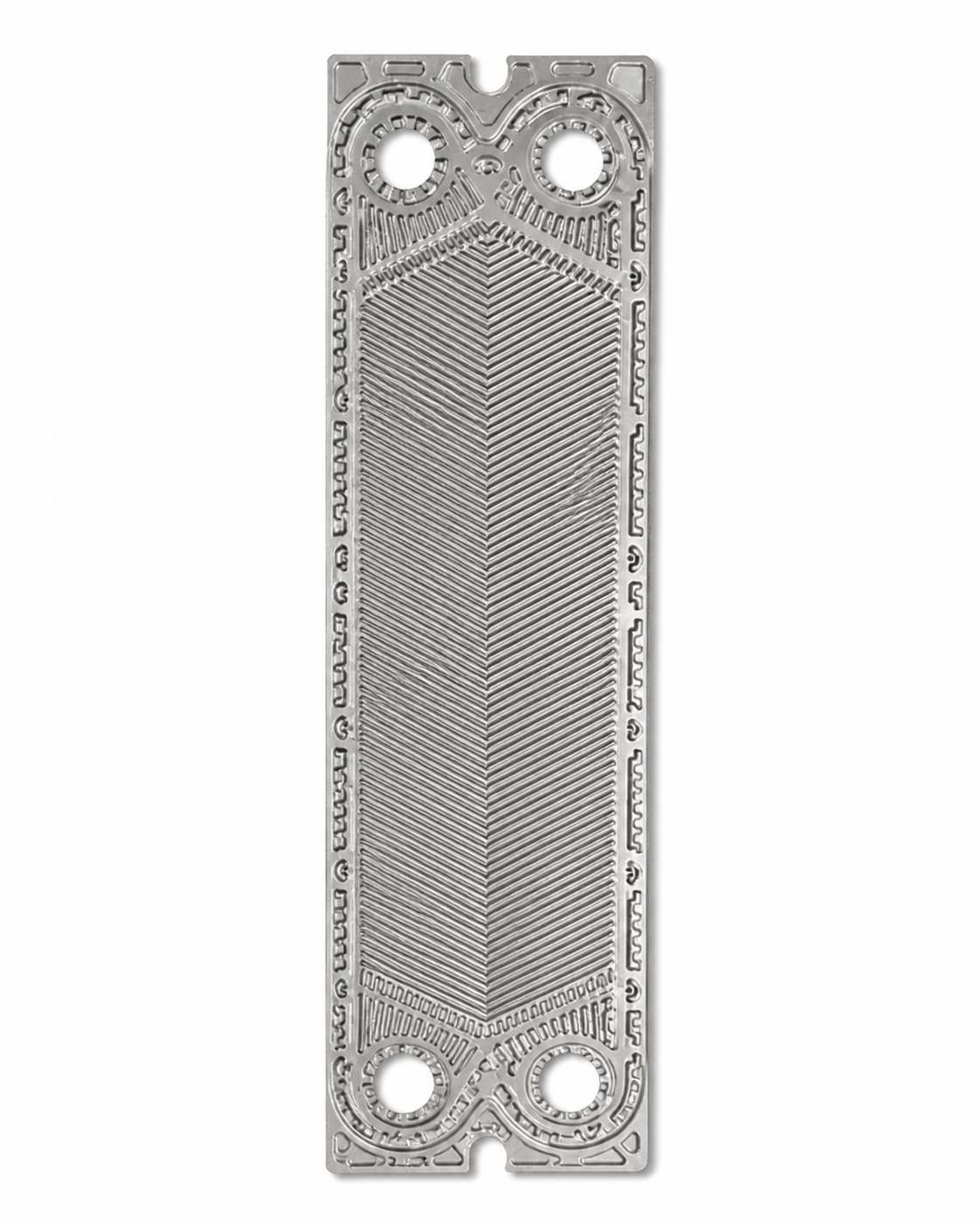

| thermowave | TL series | TL50 / TL90 / TL150 / TL150PP / TL250 / TL400 / TL650 / TL850 | NBR / EPDM / FKM | Clip-on / Bonded |
Every plate model is matched one-to-one with the gasket for the same equipment model. Confirm the plate profile and matching replacement gasket together, or send the model and photos for identification. Third-party brand names are used solely for replacement-part identification.
PLATE MATERIAL SELECTION
Material, fluid and corrosion-resistance requirements.
After selecting a sample, the table highlights materials commonly specified for that family. Final selection depends on fluid composition, concentration, temperature and cleaning method.
| Material code | Material name | Typical duty | Principal characteristics | Selection note |
|---|---|---|---|---|
| 304 | 304 stainless steel | General water and HVAC systems | Corrosion-resistant and economical | Confirm chloride concentration |
| 316L | 316L stainless steel | Industrial water, food and mildly corrosive fluids | Better corrosion resistance than 304 | Review against fluid concentration |
| Titanium | Titanium plate | Seawater, brine and high-chloride environments | Excellent resistance to chloride corrosion | Confirm the specific fluid chemistry |
| 254SMO | Super-austenitic stainless steel | Chloride-bearing fluids and demanding water systems | High resistance to pitting | Confirm cost and lead time |
| Nickel alloy | Nickel alloy | Alkalis and specialist chemical fluids | Specified by exact alloy grade | Full fluid data is required |
| Hastelloy | Hastelloy | Acidic and highly corrosive duties | Broad chemical-corrosion resistance | Confirm grade and temperature |
PLATE MANUFACTURING PROCESS
From raw-material preparation to formed plates.
Actual CHENHE workshop photographs show blank preparation, laser cutting, hydraulic pressing and work-in-process classification.
Raw material and blanks
Prepare metal sheet by material, thickness and production plan.
Laser cutting
Cut the outline, corner ports and locating areas to the plate design.
Hydraulic press forming
Use the corresponding die to form corrugations, gasket grooves and the plate profile.
Work-in-process classification
Classify formed plates by model, material and batch for inspection and matching.
CONTACT CHENHE
Send your operating conditions, existing model or part photos
Our technical team will help complete equipment selection or replacement-part identification.
